Arrow 60 64"

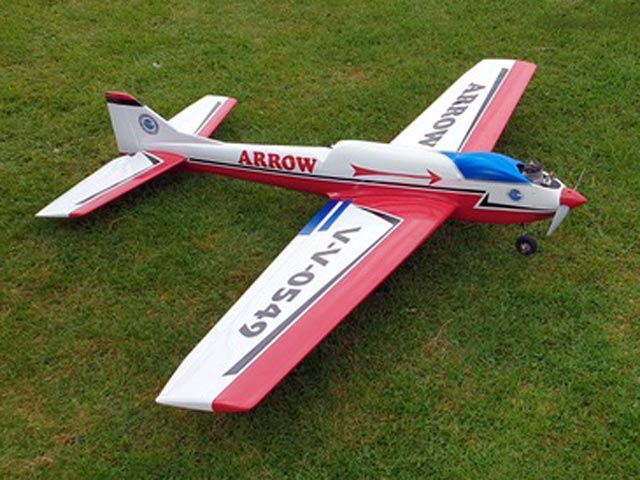

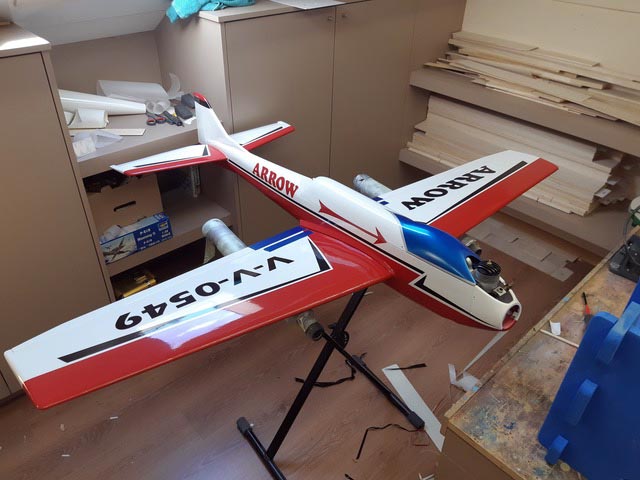

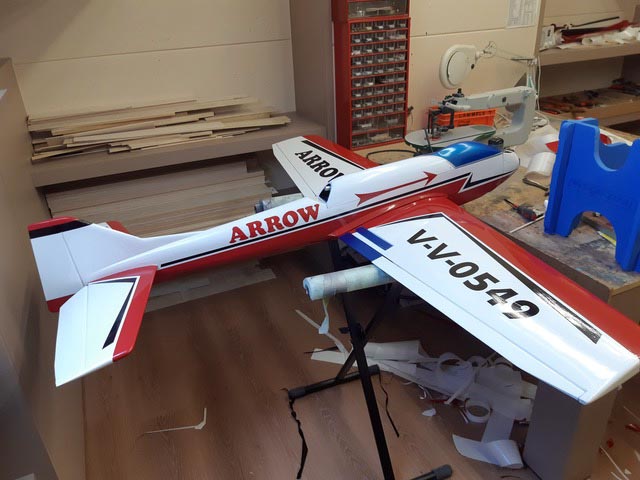

MK Arrow 60 is a Radio control pattern plane, F3A competition model.

The wingspan is 63 in, wing area 705 sq in. and ideally powered with a .60 ic with tune pipe.

For those who are curious about the actual ship Matt flew in South Africa, his entry was equipped with a piped Webra Speed, retracts, flaps, spoilers and a variable-pitch propeller. Basically the Arrow is a direct descendent of Matt's popular Atlas with clean-up efforts directed toward hiding the pipe and other minor changes.

This kit is base on the MK drawings, but has been redrawn and cleaned up. All parts are balsa build up, no fibreglass or vacuum formed parts required.

There are aftermarket parts for the fibreglass cover available.

Specifications:

• Wingspan: 64" / 1625mm
• Number of channels: 6
• Recommended engine size: 60 two stroke with tune pipe or 5 cell electric equivalent
• Includes full sized rolled plan and the designers original construction article

Materials Required For Short Kit Airframe Completion:
(These materials are included in the Complete Airframe Kit)

• 1.5 x 75 x 915 Balsa Sheet x 2
• 2.0 x 100 x 915 Balsa Sheet x 16
• 12.5 x 75 x 915 Balsa Sheet x 1
• 3.0 x 6.5 x 915 Balsa Sticks x 4
• 5.0 x 9.5 x 915 Balsa Sticks x 4
• 9.5 x 9.5 x 915 Balsa Sticks x 2
• 9.5 x 9.5 x 915 Triangle x 2
• 12.5 x 12.5 x 915 Triangle x 2

Documents:

• Plan Preview
• Article

Short Kit Or Complete Airframe Kit?

A Short Kit includes a full size printed plan and all of the laser cut parts that are required as part of the complete airframe build.

Items such as wing ribs, dihedral joiners, fuselage formers & fuselage parts, doublers, bulkheads and so on.

Every part which is a complex cut is precisely laser cut as per the plan and included in the short kit. Some kits may also include vacuum formed ABS parts like canopies or cowlings.

With a Short Kit, the only items you need to add to the laser cut parts to build a complete airframe are components which are simply cut to length. Parts such as wing spars, wing sheeting or fuselage sheeting for example.

A Complete Airframe Kit includes the Laser Cut Short Kit, plus the entire list of additional materials required to complete the airframe build.

Select this option when adding to your cart to purchase all of the materials required to complete the airframe build.

Every kit includes a full size printed plan, and where available the designers original construction notes. The kits do not include miscellaneous hardware such as pushrods, control horns, hinges, wheels etc.
